TESD04CBV规格参数 |
|||
|---|---|---|---|
| Type | 普通型TVS | ||
| RoHS | |||
| 制造商 | SPSEMI | ||
| VRWM/V | 4.5 | ||
| VBR_Min./V | 4.8 | ||
| VC/V | 10 | ||
| IPP_Max./A | 40 | ||
| IR/uA | 0.2 | ||
| Cj/pF | 100 | ||
| POWER/W | 400 | ||
| Polar | Bi | ||
TESD04CBV详情
静电放电 TESD04CBV 双向TVS 二极管/低钳位电压
DFN1006

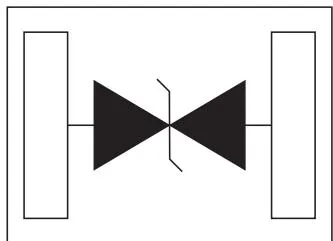

Pin Configuration
特点
- 每条线路峰值脉冲功率400瓦（tp=8/20μs）
- 保护一条双向I/O线路
- 低钳位电压
- 工作电压：4.5V
- 低漏电流
IEC 兼容性
- IEC61000-4-2 (ESD) (air), (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
TESD04CBV应用
- 蜂窝手机
- 平板电脑
- 笔记本电脑 其他便携设备
- 网络通信设备
TESD04CBV机械特性
JEDEC DFN1006 Package
Molding Compound Flammability Rating : UL 94V-O
Quantity Per Reel : 10,000pcs
Reel Size: 7 inch
- Lead Finish : Lead Free
Maximum Ratings unless otherwise specified)
| Parameter | Symbol | Value | Units |
| Peak Pulse Power(tp=8/20μs) | PPP | 400 | Watts |
| Lead Soldering Temperature | TL | 260(10 sec.) | °C |
| Operating Temperature Range | TJ | -40~85 | °C |
| Storage Temperature Range | TSTG | -55~150 | °C |
TESD04CBV电气特性(TA=25°C unless otherwise specified)
| TESD04CBV(Marking:4G) | ||||||
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Units |
| Reverse Stand-off Voltage | VRWM | 4.5 | V | |||
| Breakdown Voltage | VBR | IT=1mA | 4.6 | V | ||
| Clamping Voltage1) | VC | I PP=1A,tp=8/20μs | 4.9 | 6 | V | |
| I PP=20A,tp=8/20μs | 6.5 | 8 | V | |||
| I PP=40A,tp=8/20μs | 9 | 10 | V | |||
| Clamping Voltage2) | VC | VESD=8kV | 9 | |||
| Reverse Leakage Current | IR | @VRWM | 1 | μA | ||
| Junction Capacitance | C I/O | 0Vdc,f=1MHzBetween I/O Pins and GND | 65 | 75 | pF | |
Notes:
1) Contact discharge mode,accodin to IEC61000-4-5
2) Non-repetitive current pulse, accodin to IEC61000-4-2

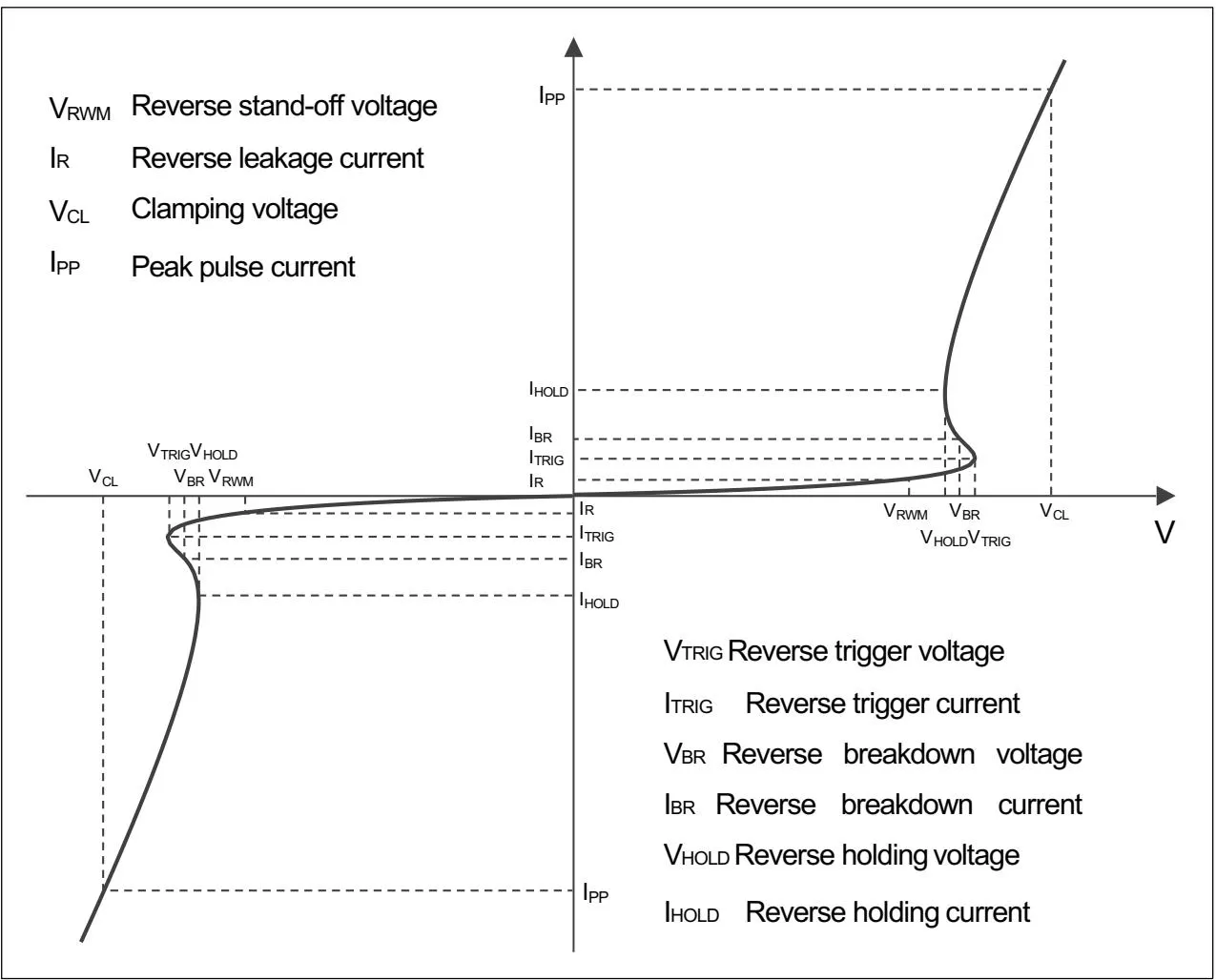

TESD04CBV电气特征 unless otherwise specified)
Ratings and Characteristic Curves

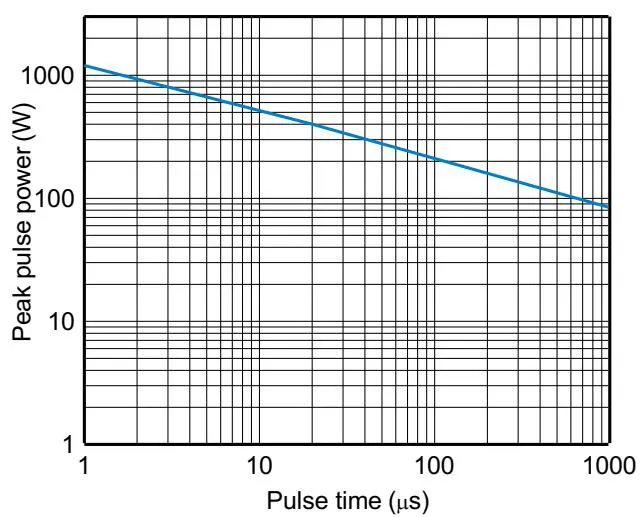

Fig.1 Non-Repetitive Pulse Power vs.Pulse Time

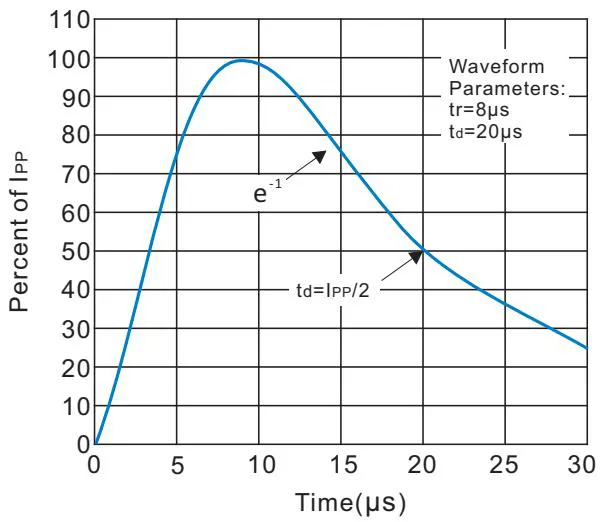

Fig.2 Pulse Waveform

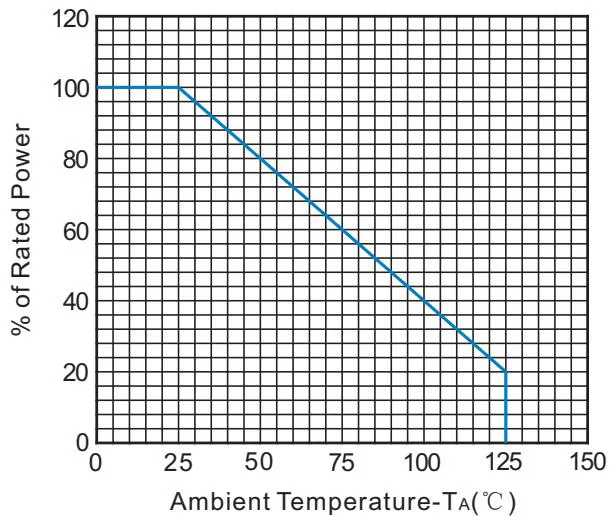

Fig.3 Power Derating Curve

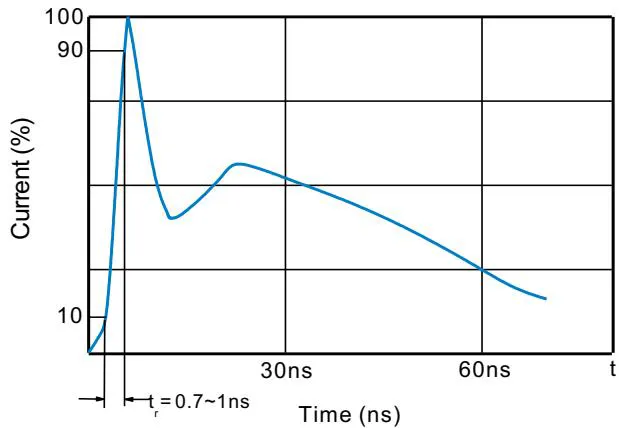

Fig.4 Contact discharge current waveform per IEC61000-4-2
尺寸(DFN1006)
DFN1006
| DIM | Millimeters | Inches | ||
| Min | Max | Min | Max | |
| A | 0.95 | 1.08 | 0.037 | 0.043 |
| B | 0.55 | 0.68 | 0.022 | 0.027 |
| C | 0.45 | 0.55 | 0.017 | 0.022 |
| D | 0.20 | 0.40 | 0.008 | 0.016 |
| E | 0.65BSC | 0.026BSC | ||
| F | 0.34 | 0.55 | 0.013 | 0.022 |
| G | 0.00 | 0.10 | 0.000 | 0.004 |
