TESD03CB规格参数 |
|||
|---|---|---|---|
| Type | 普通型TVS | ||
| RoHS | |||
| 制造商 | SPSEMI | ||
| VRWM/V | 3.3 | ||
| VBR_Min./V | 3.5 | ||
| VC/V | 10 | ||
| IPP_Max./A | 9 | ||
| IR/uA | 0.5 | ||
| Cj/pF | 15 | ||
| POWER/W | 90 | ||
| Polar | Bi | ||
TESD03CB详情
静电放电 TESD03CB 双向TVS二极管
DFN1006

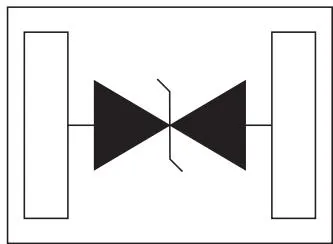

引脚配置
TESD03CB特点
- 每条线路峰值脉冲功率90瓦（tp=8/20微秒）
—保护一条双向I/O线路 - 低钳位电压
- 工作电压：3.3V
- 低漏电流
IEC兼容性
- IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
TESD03CB应用
- 局域网设备
- 视频
- DVI
- 高速数据线
- 电源和数据线保护
- USB 2.0
TESD03CB机械特性
JEDEC DFN1006 Package
Molding Compound Flammability Rating : UL 94V-0
Quantity Per Reel : 10,000pcs
- Packaging:Tape and Reel
Lead Finish : Lead Free
Maximum Ratings unless otherwise specified)
| Parameter | Symbol | Value | Units |
| Peak Pulse Power(tp=8/20μs) | P PP | 90 | Watts |
| Lead Soldering Temperature | T L | 260(10 sec.) | °C |
| Operating Temperature Range | T J | -55~150 | °C |
| Storage Temperature Range | T STG | -55~150 | °C |
电气特性(TA=25°C unless otherwise specified)
TESD03CB(Marking: F3)
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Units |
| Reverse Stand-off Voltage | VRWM | 3.3 | V | |||
| Breakdown Voltage | VBR | IT=1mA | 3.5 | V | ||
| Clamping Voltage | VC | I PP=1A,tp=8/20μs | 4.5 | 6 | V | |
| Clamping Voltage | VC | I PP=9A,tp=8/20μs | 8 | 10 | V | |
| Clamping Voltage | VC | IEC 61000-4-2 +8KV(ITLP=16A), T=25°, contact mode | 8 | V | ||
| Reverse Leakage Current | IR | @VRWM | 0.9 | μA | ||
| Junction Capacitance | CI/O | VR=0V,f=1MHz | 15 | pF |
TESD03CB额定值与特性曲线

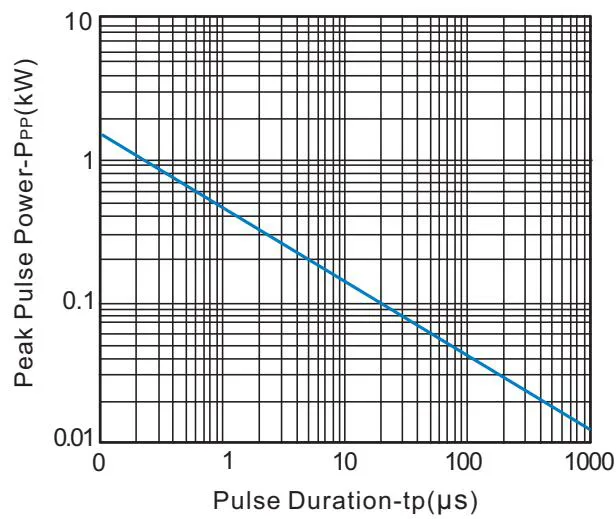

Fig.1 Non-Repetitive Pulse Power vs.Pulse Time
Fig.2 Pulse Waveform
I-V 特性曲线

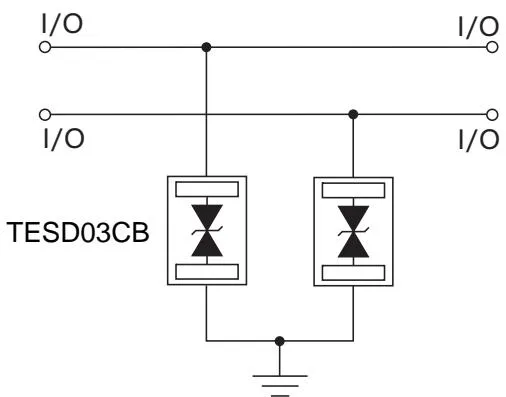

应用方案
I/O保护
TESD03CB尺寸(DFN1006)
DFN1006
| DIM | Millimeters | Inches | ||
| Min | Max | Min | Max | |
| A | 0.95 | 1.07 | 0.037 | 0.042 |
| B | 0.55 | 0.65 | 0.022 | 0.026 |
| C | 0.45 | 0.55 | 0.017 | 0.022 |
| D | 0.20 | 0.40 | 0.008 | 0.016 |
| E | 0.65BSC | 0.026BSC | ||
| F | 0.40 | 0.55 | 0.015 | 0.022 |
| G | 0.00 | 0.10 | 0.000 | 0.004 |
