JSPG3100A规格参数 |
|||
|---|---|---|---|
| Type | 肖特基二极管 | ||
| RoHS | |||
| 制造商 | JJM | ||
| VRRM _Max/V | 100 | ||
| IF (AV)/A | 3 | ||
| IR_Max/μA | 100 | ||
| IFSM _Max/A | 80 | ||
| VF_Max/V | 0.85 | ||
JSPG3100A详情
JSPG3100A
3A肖特基障壁整流器
JSPG3100A描述
塑料包装具有承保实验室的易燃性 分类 94V-0
用于表面贴装应用，以优化板块空间
符合欧盟RoHS 2011/65/EU指令的无铅
超低正向压降
低功率损耗，高效运行
高电流能力和浪涌能力
低热阻封装
JSPG3100A机械数据
Case: SMB molded plastic
Terminals: Solder plated, solderable per J-STD-002
Polarity: Color band denotes cathode end
JSPG3100A绝对最大额定值 (Rating at ambient temperature unless otherwise specified.)
| Parameter | Symbol | JSPG3100A | Unit |
| Maximum repetitive peak reverse voltage | VRRM | 100 | V |
| Maximum RMS voltage | VRMS | 70 | V |
| Maximum DC blocking voltage | VDC | 100 | V |
| Maximum average forward current | IF(AV) | 3.0 | A |
| Peak forward surge current: 8.3ms single half sine-wave superimposed on rated load | IFSM | 80 | A |
| Operating junction temperature range | Tj | -55 to +150 | °C |
| Storage temperature range | Tstg | -55 to +150 | °C |
JSPG3100A电气特性 (Rating at ambient temperature unless otherwise specified.)
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Forward voltage | IF=3A | VF | 0.85 | V | ||
| Reverse current at rated DC blocking voltage | TA=25°C | IR | 0.1 | mA | ||
| TA=100°C | 8 | |||||
| Junction capacitance | VR=4.0V, f=1MHz | CJ | 90 | pF | ||
THERMAL RESISTANCES
| Symbol | Parameter | JSPG3100A | Unit |
| Rth(j-a) | Thermal resistance from junction to ambient (note1) | 60 | °C/W |
Note1: Thermal resistance from junction to ambient at 0.375”(9.5mm) lead length, P.C.B mounted

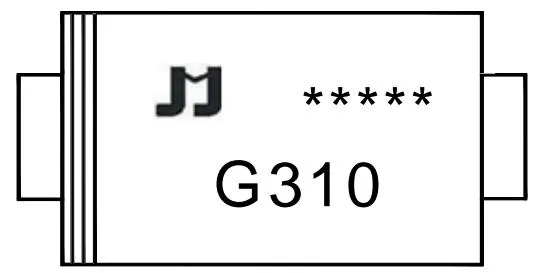

印字说明
| The first ‘*’ | Date code |
| The second ‘*’ | |
| The third ‘*’ | Batch code |
| The fourth ‘*’ | |
| The fifth ‘*’ | |
| G | Package: SMB |
| 3 | IF(AV):3A |
| 10 | VRRM:100V |

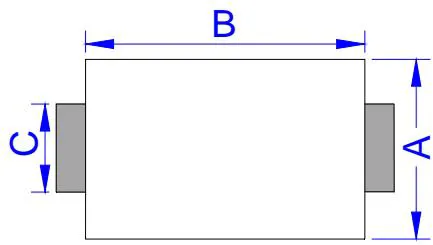

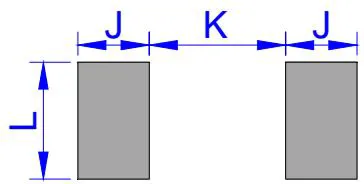

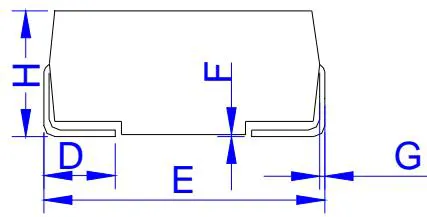

封装机械数据
DO-214AA (SMB)
| Ref. | Dimensions | |||
| Millimeters | Inches | |||
| Min. | Max. | Min. | Max. | |
| A | 3.30 | 3.94 | 0.130 | 0.155 |
| B | 4.30 | 4.80 | 0.169 | 0.189 |
| C | 1.90 | 2.20 | 0.075 | 0.087 |
| D | 0.95 | 1.52 | 0.037 | 0.060 |
| E | 5.20 | 5.60 | 0.205 | 0.220 |
| F | 0.051 | 0.203 | 0.002 | 0.008 |
| G | 0.15 | 0.31 | 0.006 | 0.012 |
| H | 2.10 | 2.40 | 0.083 | 0.094 |
| J | 2.20 | 0.087 | ||
| K | 2.60 | 0.102 | ||
| L | 2.30 | 0.091 | ||

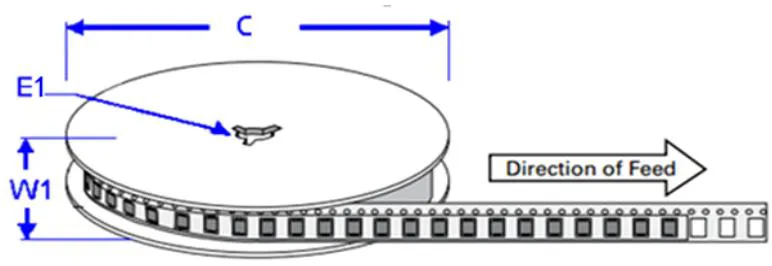

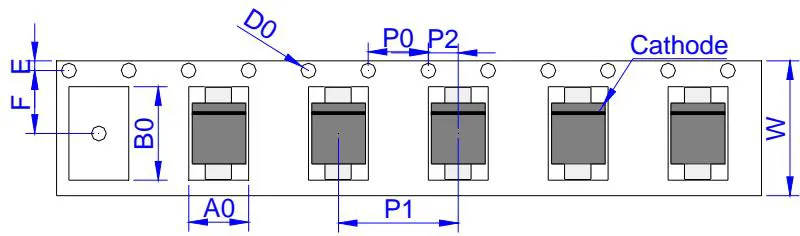

TAPE AND REEL SPECIFICATION-SMB
| Ref. | Dimensions | |
| Millimeters | Inches | |
| A0 | 3.76 ± 0.3 | 0.148 ± 0.012 |
| B0 | 5.69± 0.3 | 0.224 ± 0.012 |
| C | 330.0 | 13.0 |
| D0 | 1.55 ± 0.1 | 0.061 ± 0.004 |
| E | 1.75 ± 0.2 | 0.069 ± 0.008 |
| E1 | 13.3 ± 0.3 | 0.524± 0.012 |
| F | 5.5 ± 0.2 | 0.217 ± 0.008 |
| P0 | 4.00 ± 0.2 | 0.157 ± 0.008 |
| P1 | 8.00 ± 0.2 | 0.3145 ± 0.008 |
| P2 | 2.00 ± 0.2 | 0.079 ± 0.008 |
| W | 12.0± 0.2 | 0.472 ± 0.008 |
| W1 | 15.7 ± 2.0 | 0.618 ± 0.079 |
| OUTLINE | UNIT WEIGHT (g/PCS) typ. | REEL (PCS) | PER CARTON (PCS) | REEL DIAMETERS (mm) |
| TAPING | 0.1 | 3,000 | 48,000 | 330 |

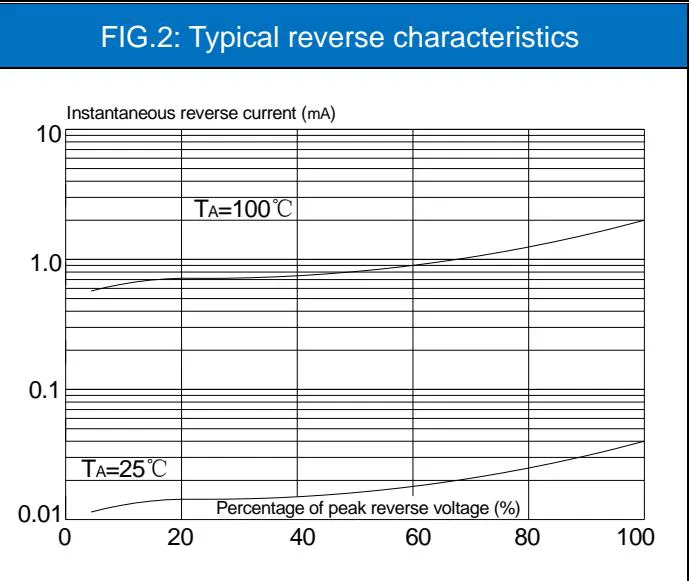

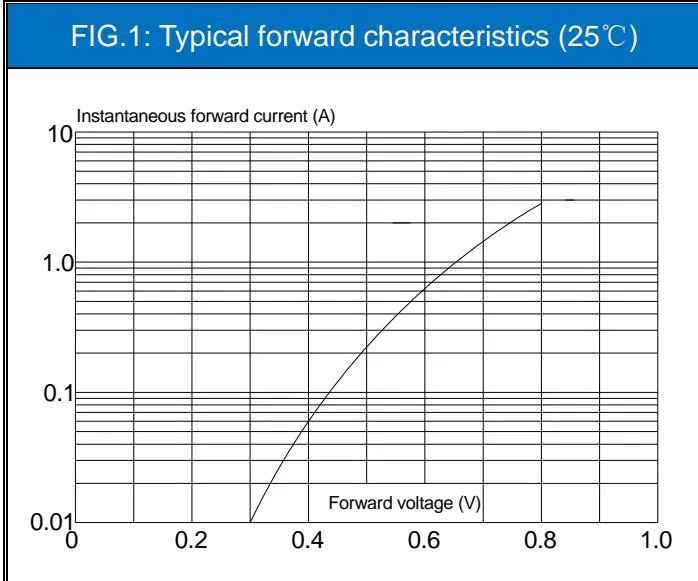

特性曲线

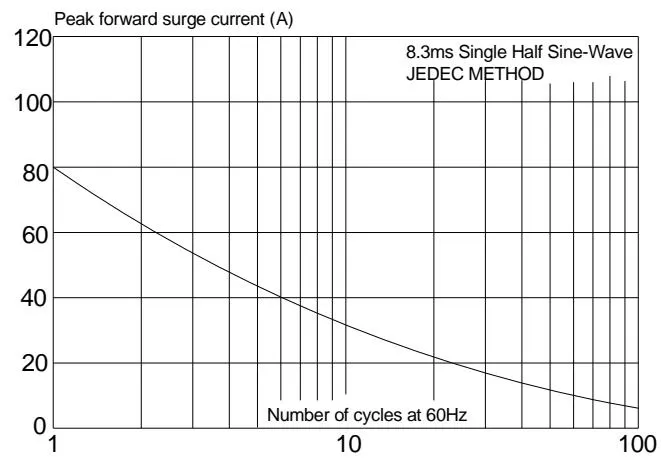

FIG.3: Maximum non-repetitive peak forward surge current

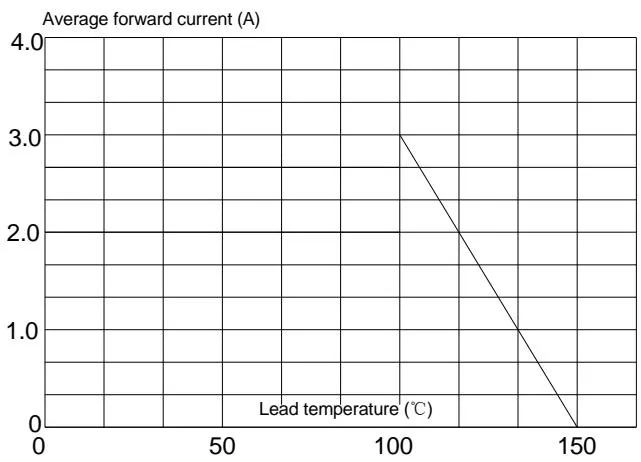

FIG.4: Forward current derating curve
FIG.5: Maximum transient thermal impedance

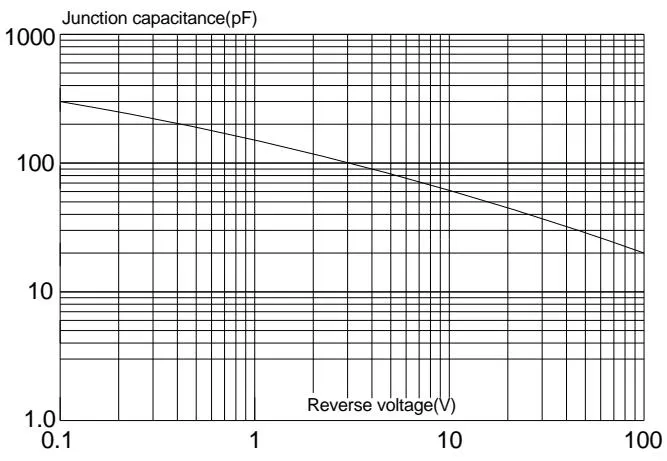

FIG.6: Typical junction capacitance
